Vintage Road Frame Buying Guide

Understanding Tubing

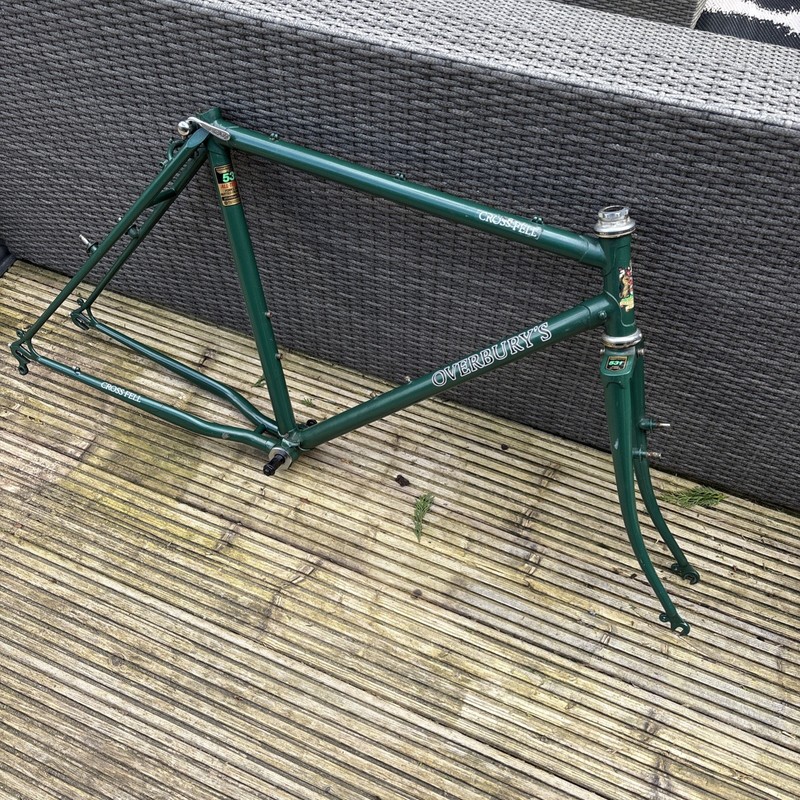

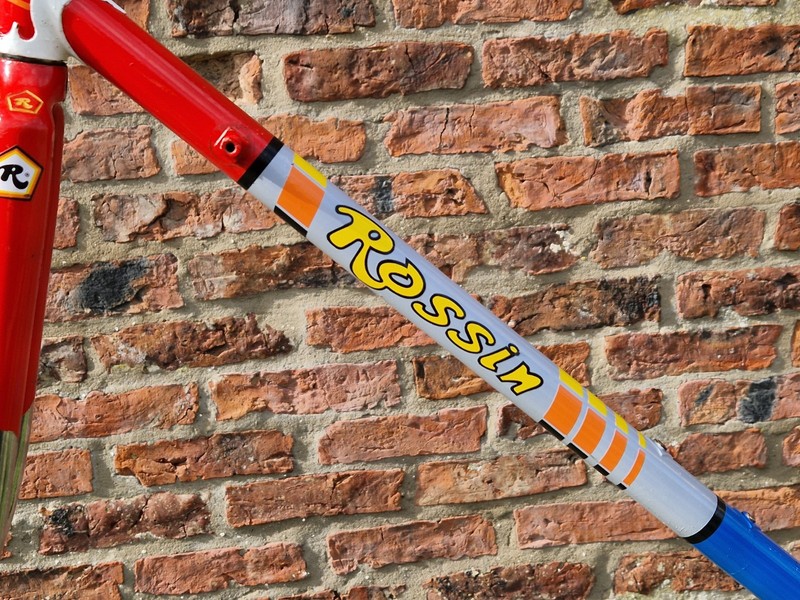

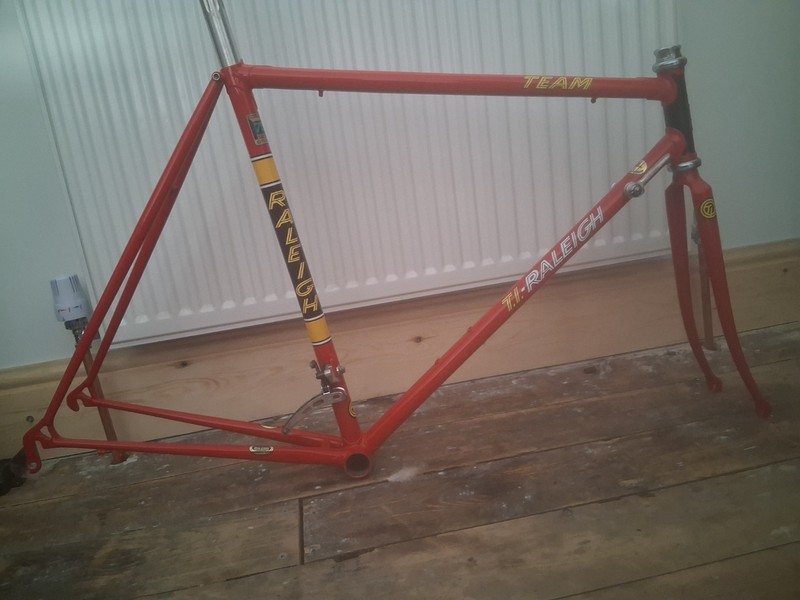

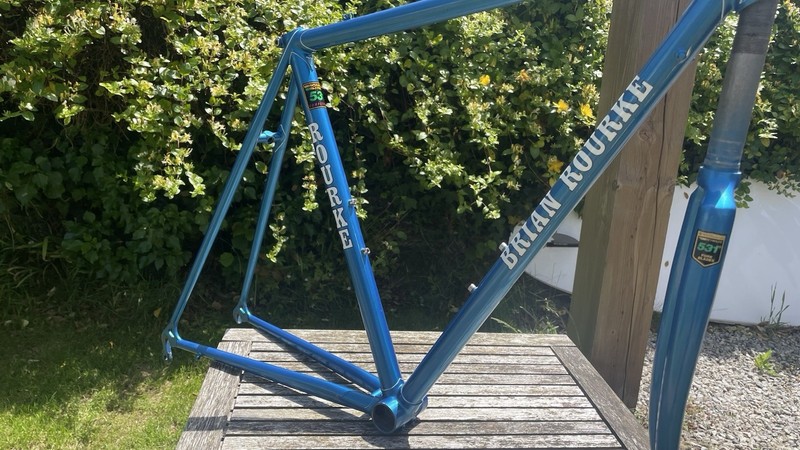

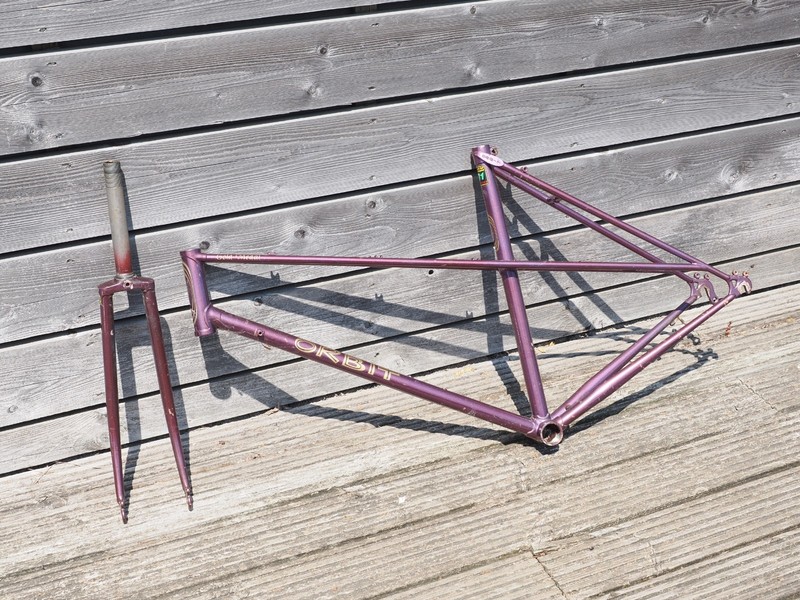

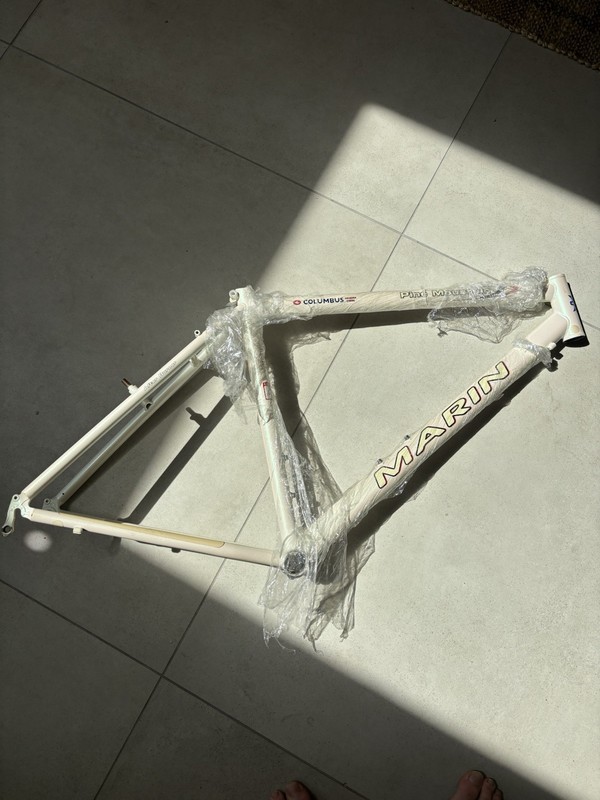

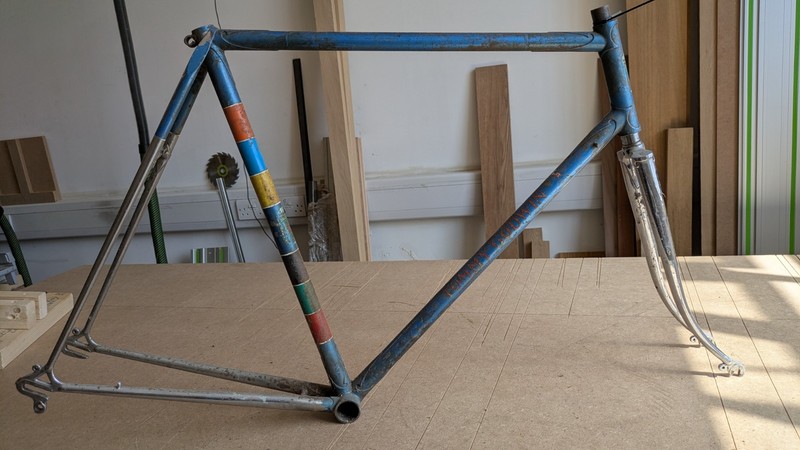

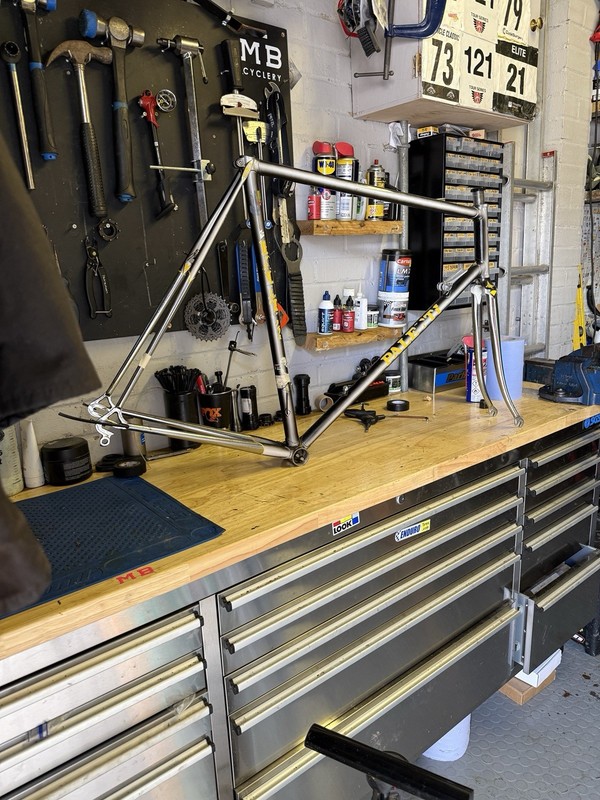

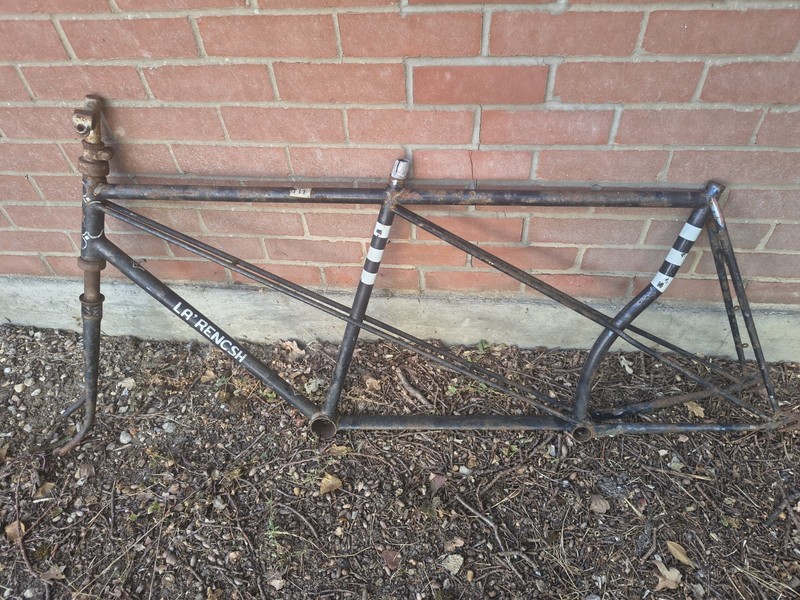

The tubing decal on the seat tube tells you what you're buying. Reynolds 531 is the most common quality British tubeset — strong, well-riding, and used on everything from club bikes to professional race machines. 531c (competition) is lighter with thinner butting. Reynolds 753 is the premium — requires specialist brazing and rides more responsively, but it's thin-walled and dents more easily. Columbus SL is the Italian equivalent of 531 — the default for mid-to-high-end Italian frames. Columbus SP is lighter, Columbus SLX has oversized tubes for stiffness. Tange Prestige and Champion are the Japanese equivalents. Vitus 172 and 979 are the French options — 979 was a pioneering aluminium tubeset. Hi-tensile steel (unmarked or "high tensile" stickers) is entry-level — heavy and dead-feeling but serviceable.

British Frame Builders

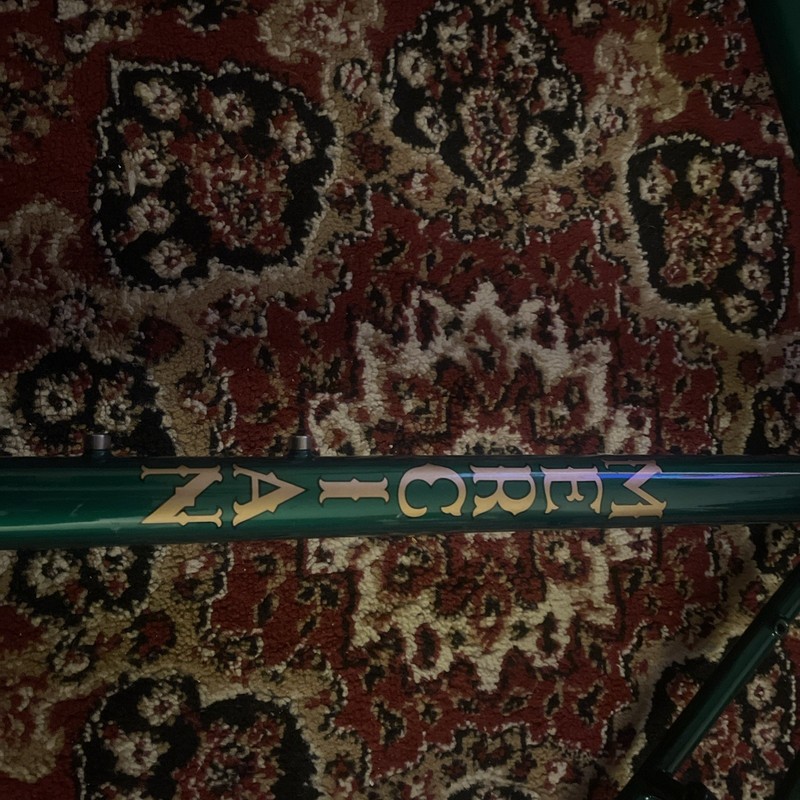

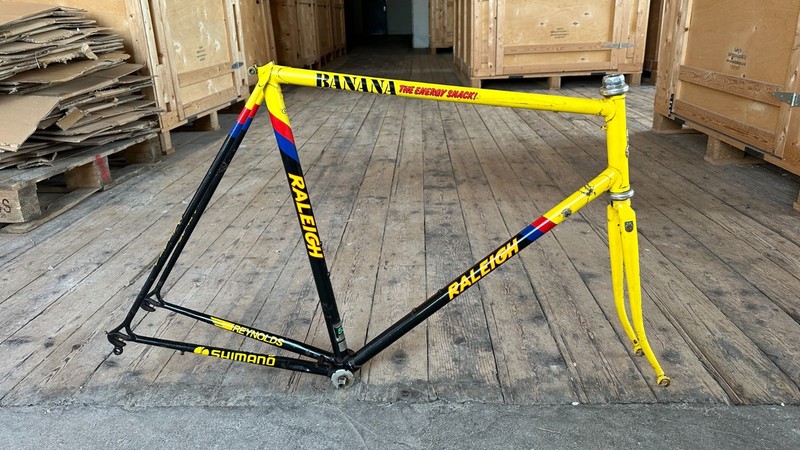

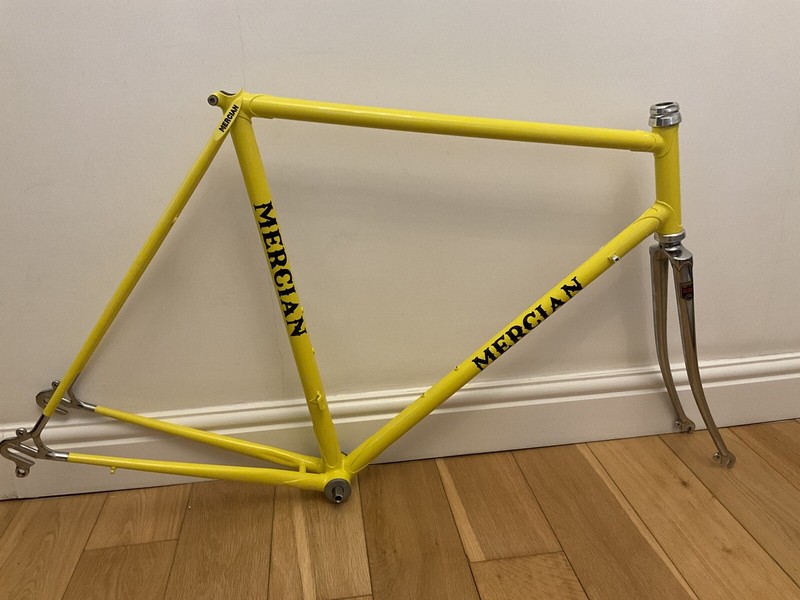

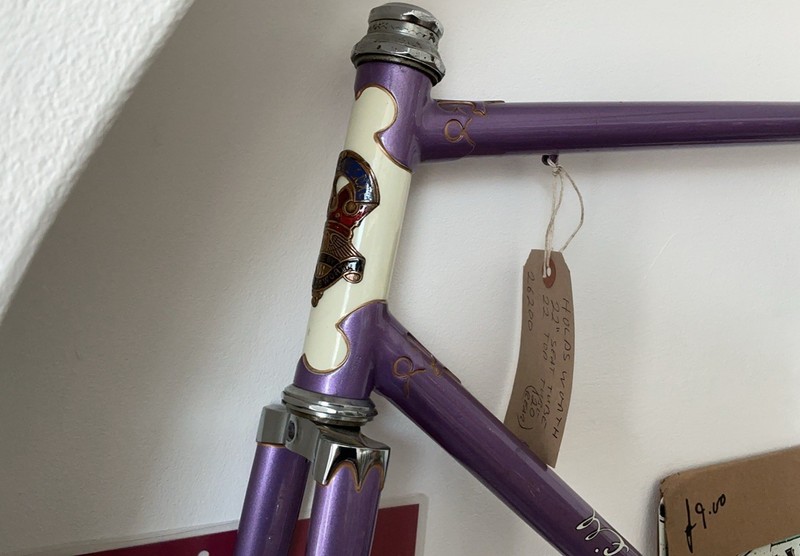

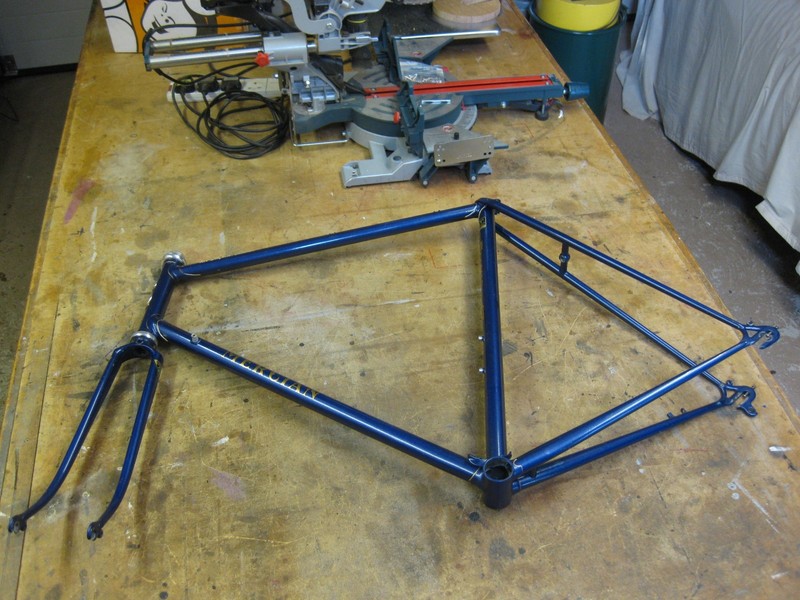

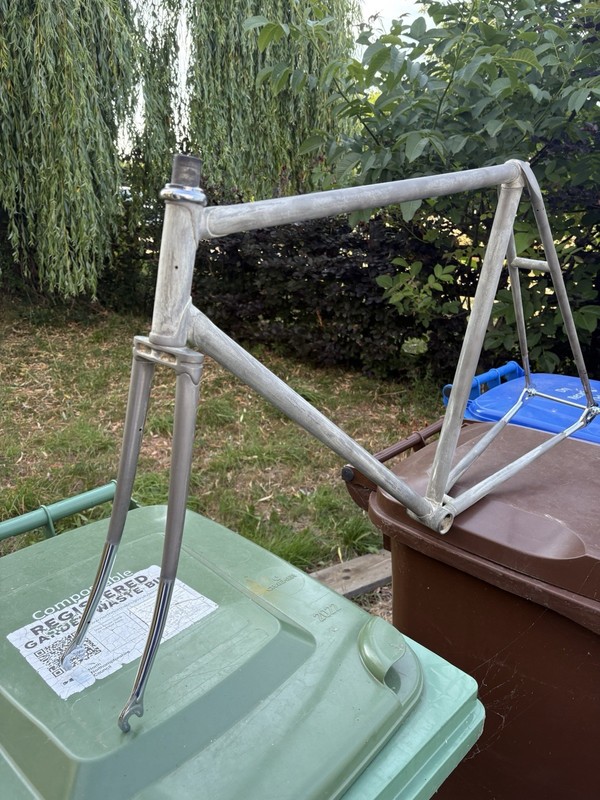

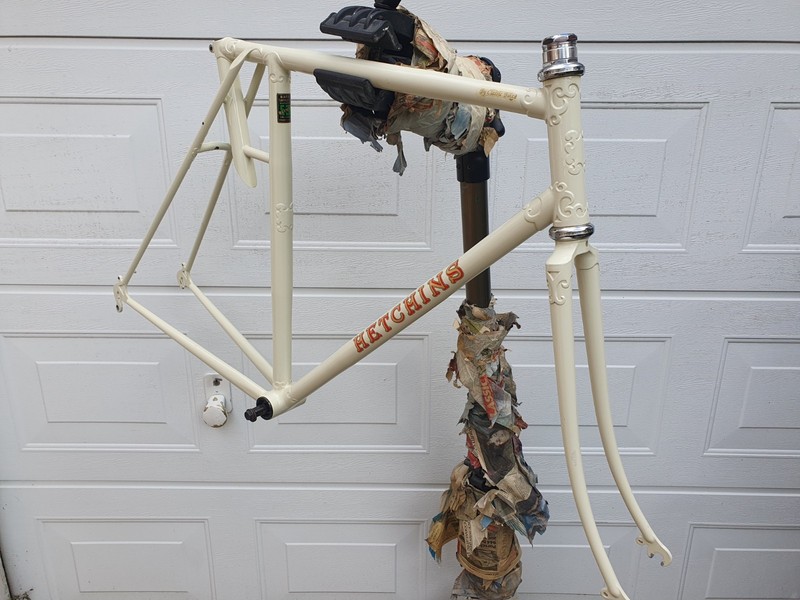

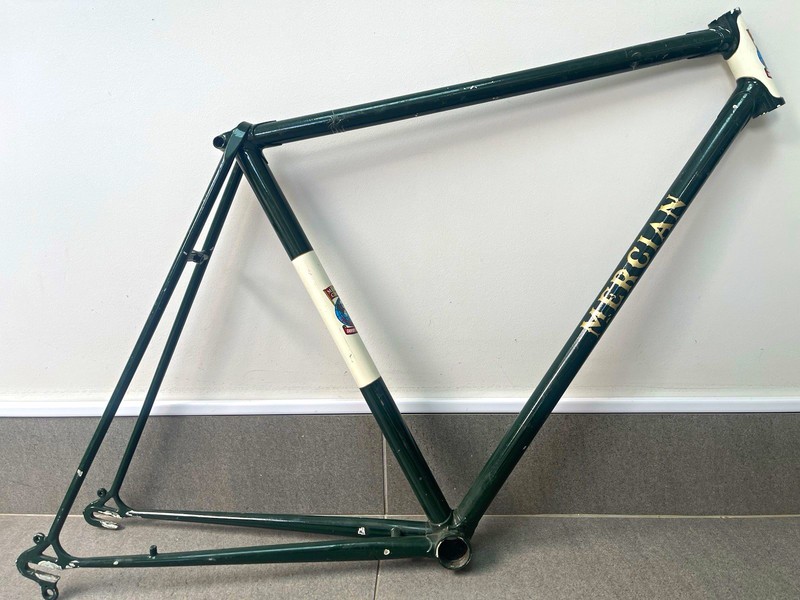

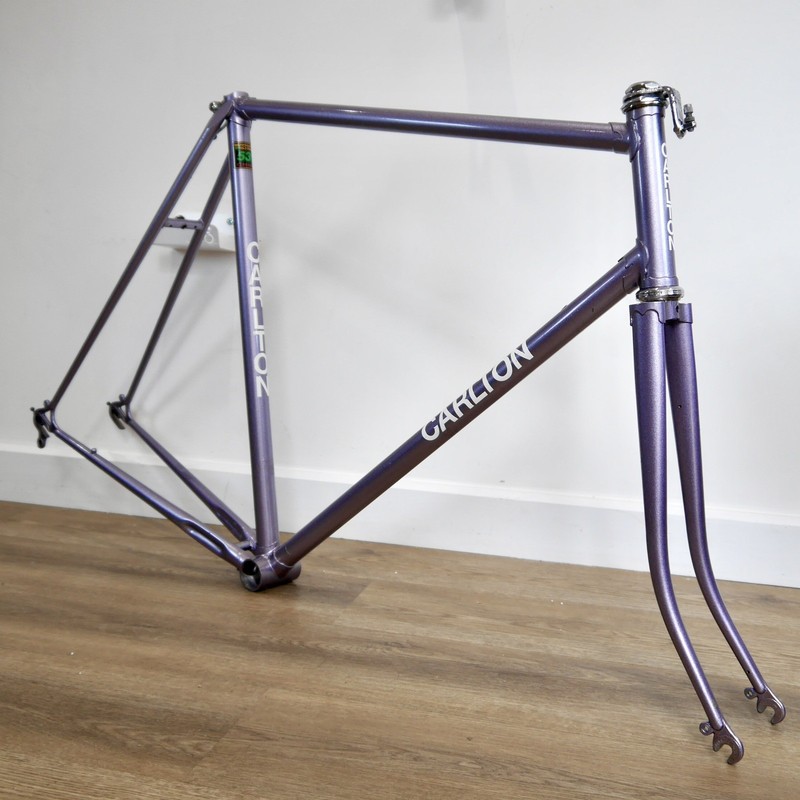

Britain produced world-class frame builders whose work is now highly collectible. Mercian (Derby) still operates and their vintage frames are among the most sought-after. Bob Jackson (Leeds) produced quality frames for decades. Jack Taylor (Stockton-on-Tees) specialised in touring and tandem frames with distinctive twin-lateral stays. Harry Quinn (Liverpool) was known for track and road racing frames. Holdsworth produced both mass-market and high-end racing frames. Carlton (Worksop, later absorbed by Raleigh) made racing bikes under their own name and for Raleigh's professional team. Hetchins are the ultimate collector's frame — curly stays and ornate lugwork command four-figure prices.

Italian and French Frames

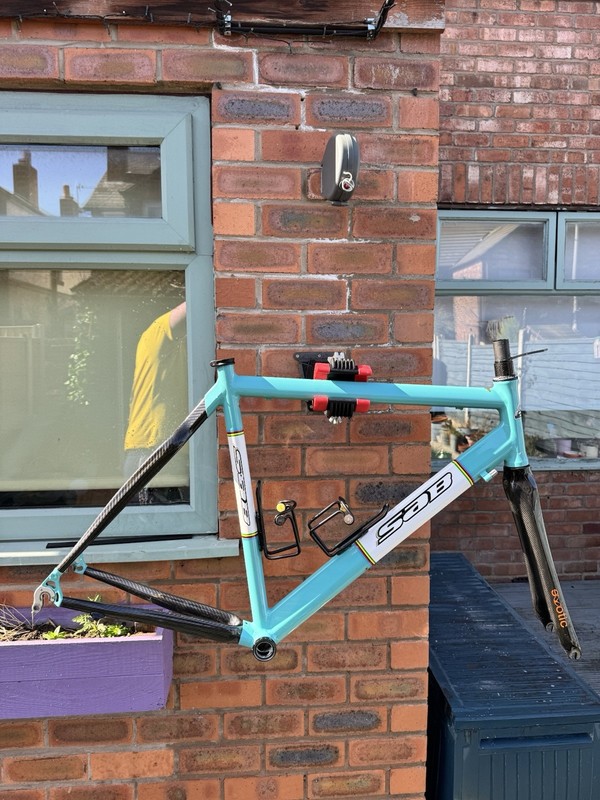

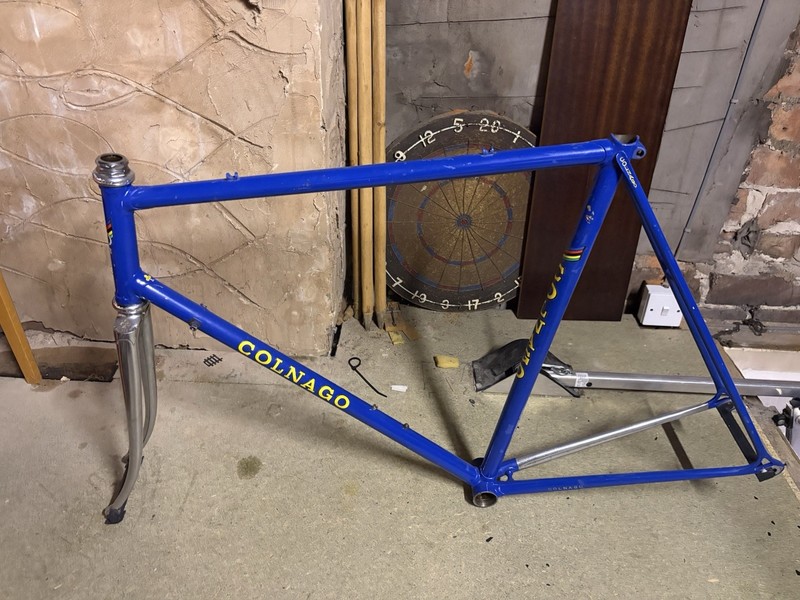

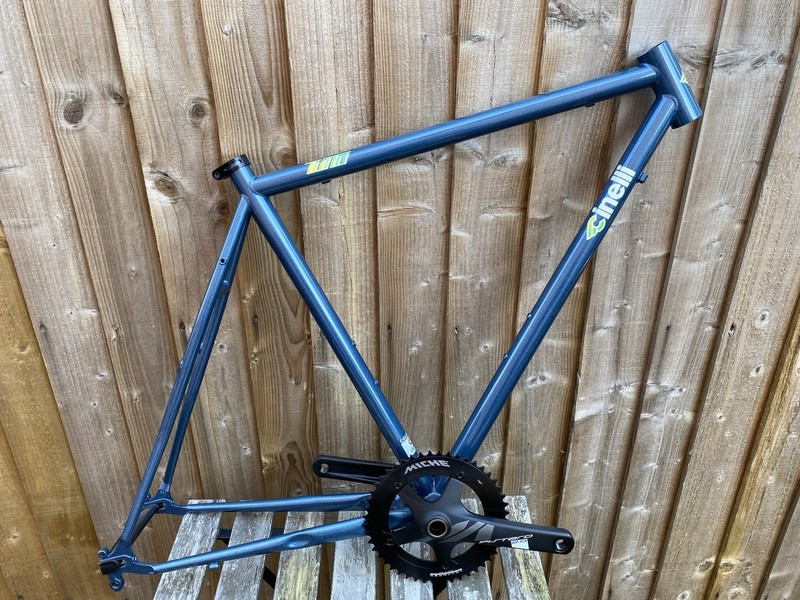

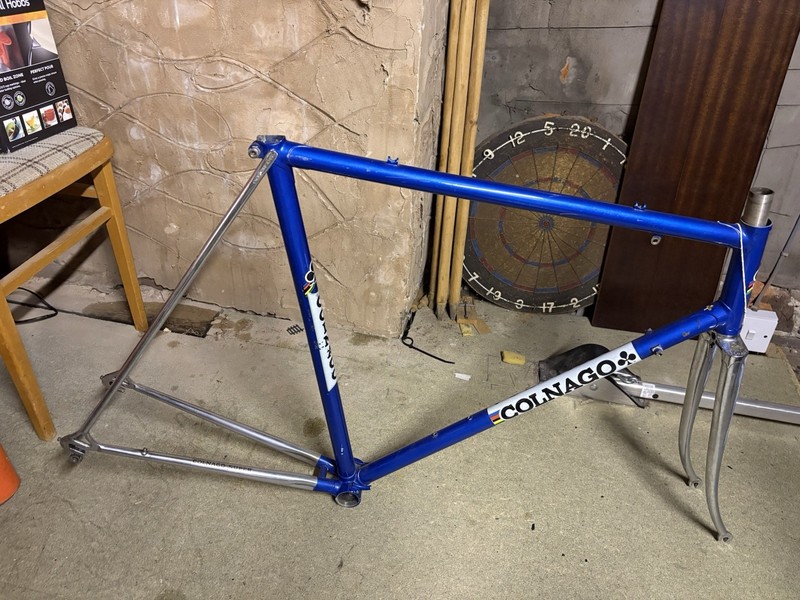

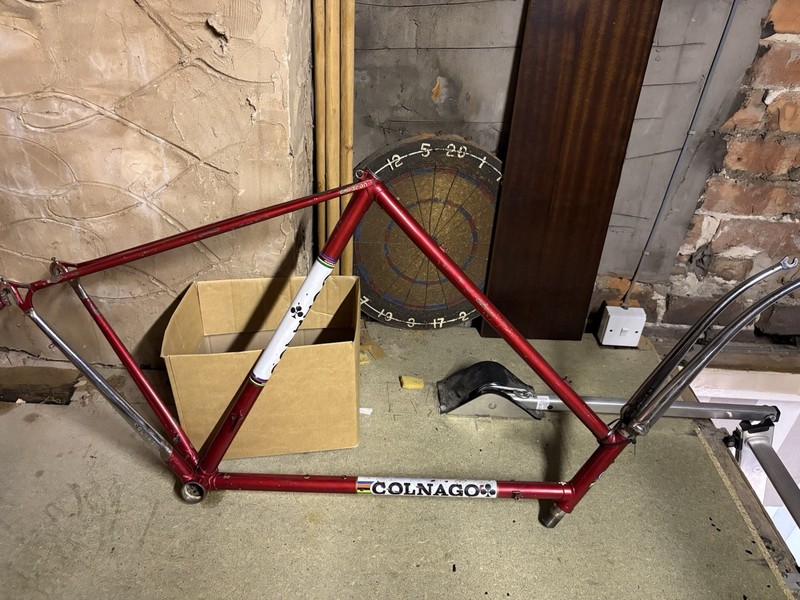

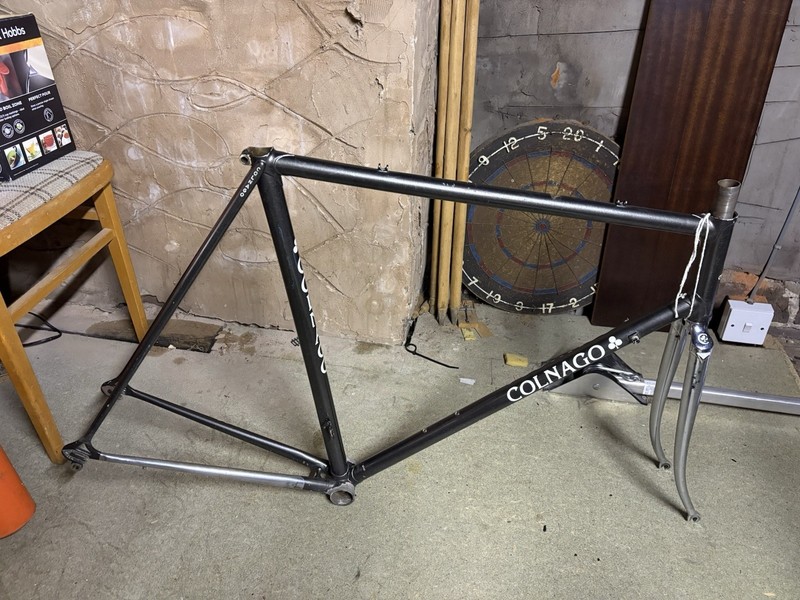

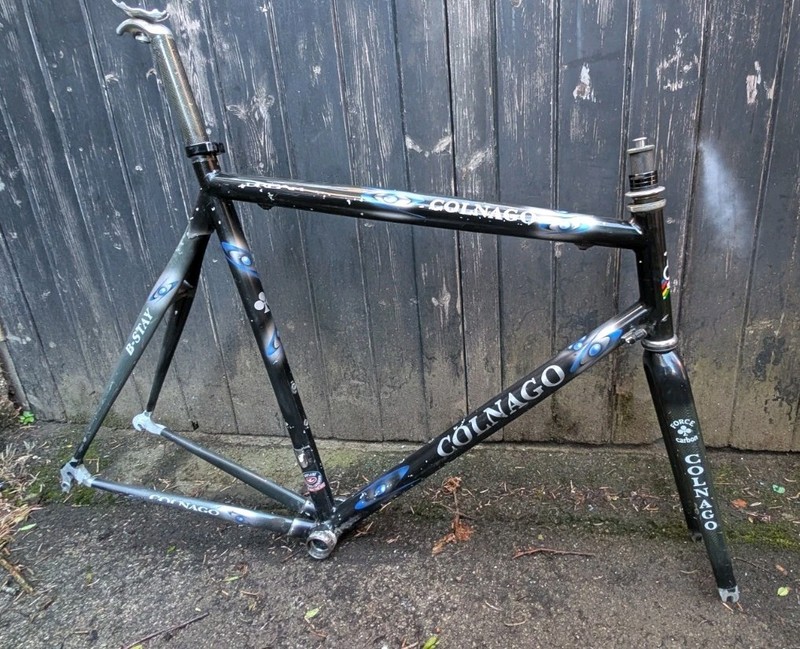

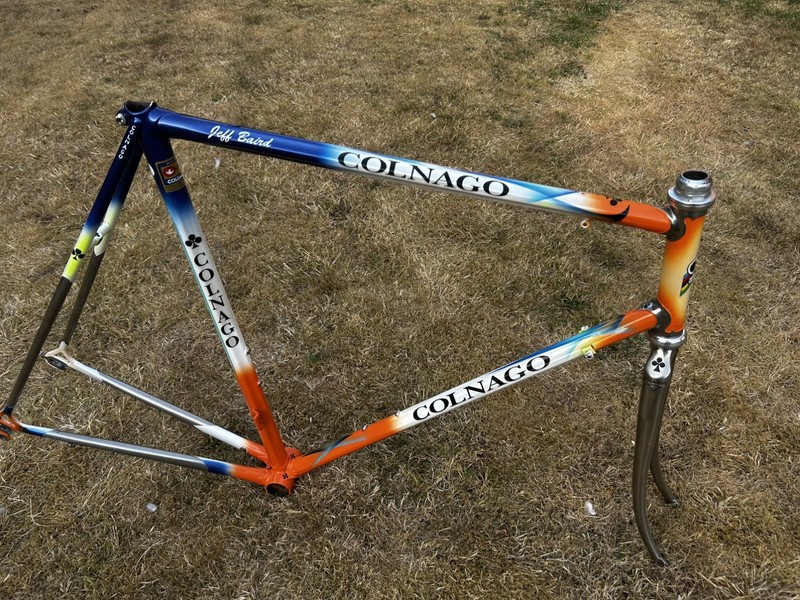

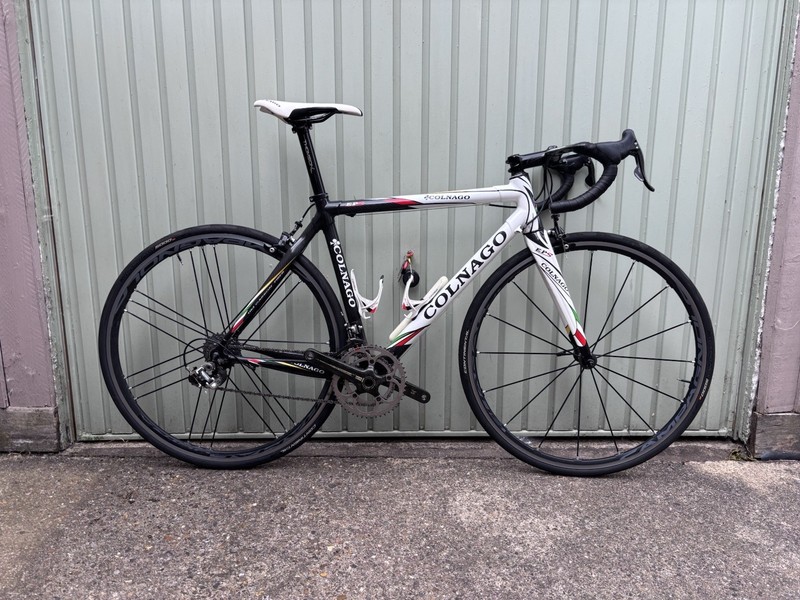

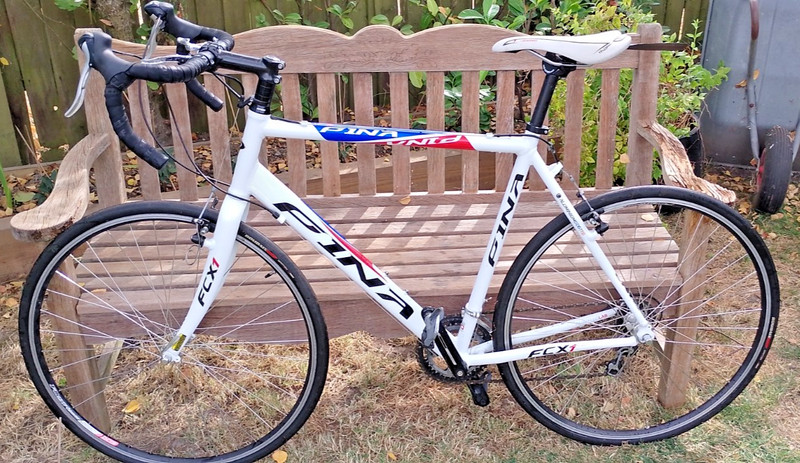

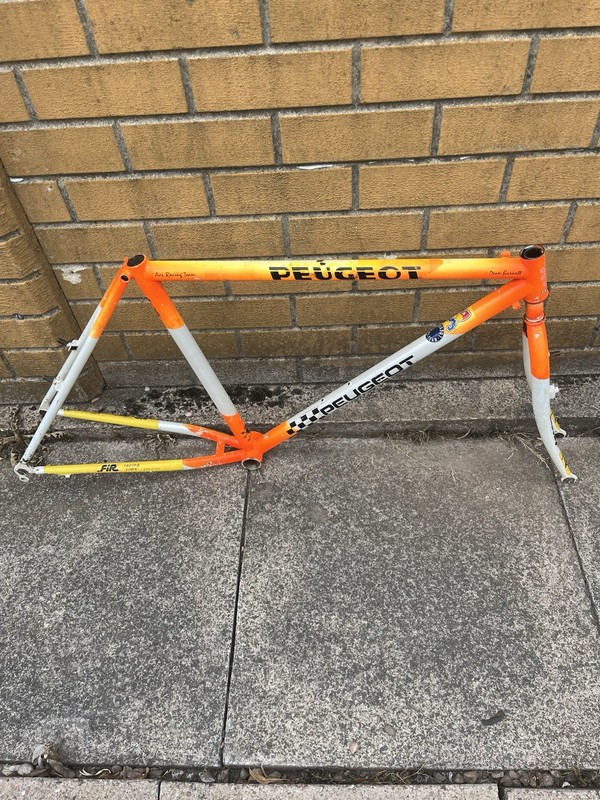

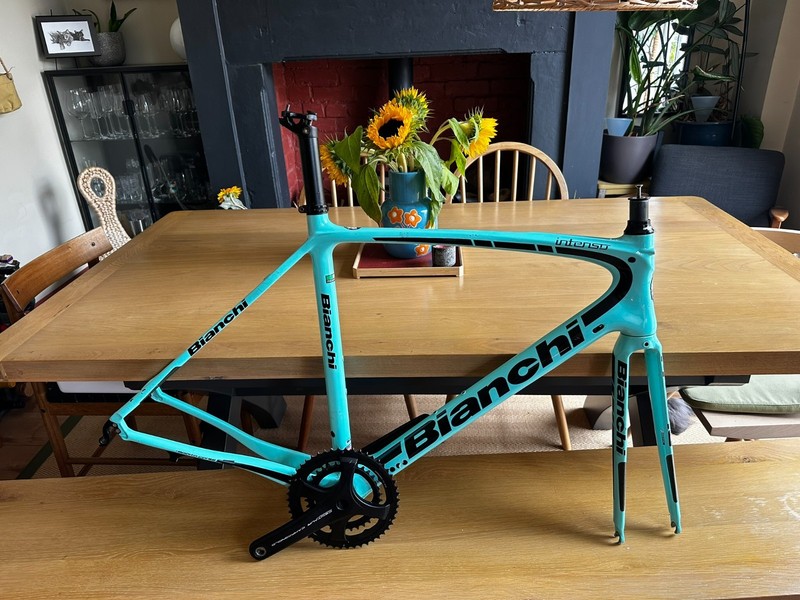

Colnago (Master, Super, Mexico) are the most recognised Italian vintage frames — distinctive star fork crown and clover-leaf tubing on the Master. De Rosa (Professional, Neo Primato) are equally revered. Cinelli Supercorsa is a classic racing frame. Bianchi is recognisable by celeste green paint. Pinarello, Tommasini, and Masi complete the Italian top tier. French frames — Peugeot PX-10, Gitane Tour de France, Motobécane — used different threading standards (French BB, fork) which complicates parts sourcing. Check thread standards before buying a French frame.

Threading and Standards

Vintage frames use older standards that aren't always compatible with modern parts. British and Italian frames use different bottom bracket threading — English/BSA (1.370" x 24tpi) vs Italian (36mm x 24tpi, right-hand both sides). French frames use yet another standard (35mm x 1mm). Fork steerers are 1" threaded (not modern 1-1/8" threadless). Seatposts are often non-standard diameters — 26.8mm, 27.0mm, 27.2mm depending on tube specification. Rear dropout spacing is typically 120mm (5-speed) or 126mm (6/7-speed) — modern wheels use 130mm, so cold-setting the frame may be needed. A frame builder can advise on compatibility.

What to Inspect

Rust is the primary concern. Check inside the seat tube by pulling the seatpost — surface rust is fine, deep pitting weakens the tube. Inspect the bottom bracket shell for water damage. Look at areas where paint chips have exposed bare steel — around cable guides, bottle cage bolts, and dropout faces. Check frame alignment by standing behind the bike and verifying the rear wheel centres between the chainstays. Bent fork blades (swept backwards from a frontal impact) are common — check by viewing the fork from the side against a straight edge. Examine lug joints for brazing cracks, especially around the head tube. Dents in thin-walled Reynolds 753 tubing can weaken the frame — avoid dented 753.

Restoration vs Preservation

Original paint in good condition adds significant value to collectible frames — don't repaint a Colnago Master or Mercian with intact original finish. Pantographed details (brand name filed into the fork crown or lugs) are irreplaceable. For riders rather than collectors, a quality respray from a specialist like Argos Racing Cycles or Cyclomondo costs £200-400 and gives a second life to tired frames. Keep all original components if you strip for repainting — period-correct rebuilds command premiums. Chrome on fork tips, stays, and lugs should be checked for flaking — re-chroming is expensive but possible.
