Aero Frames

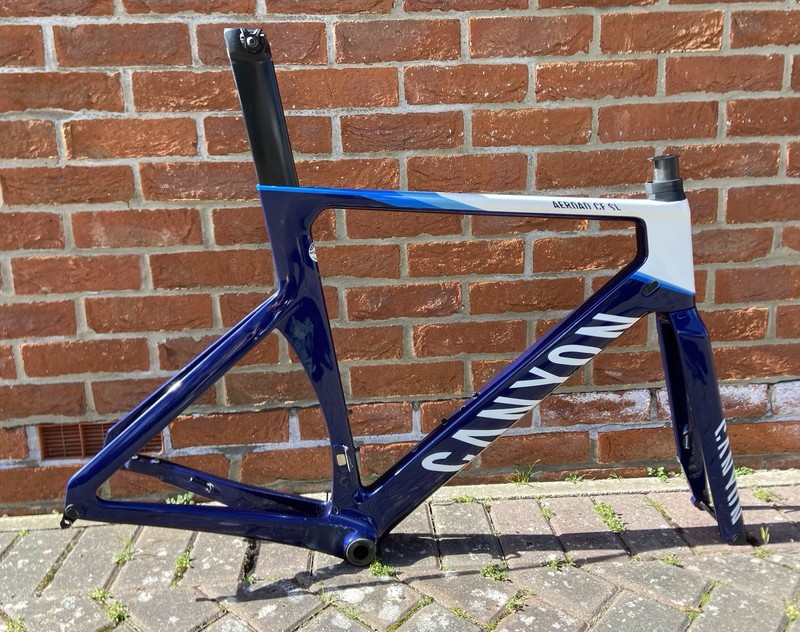

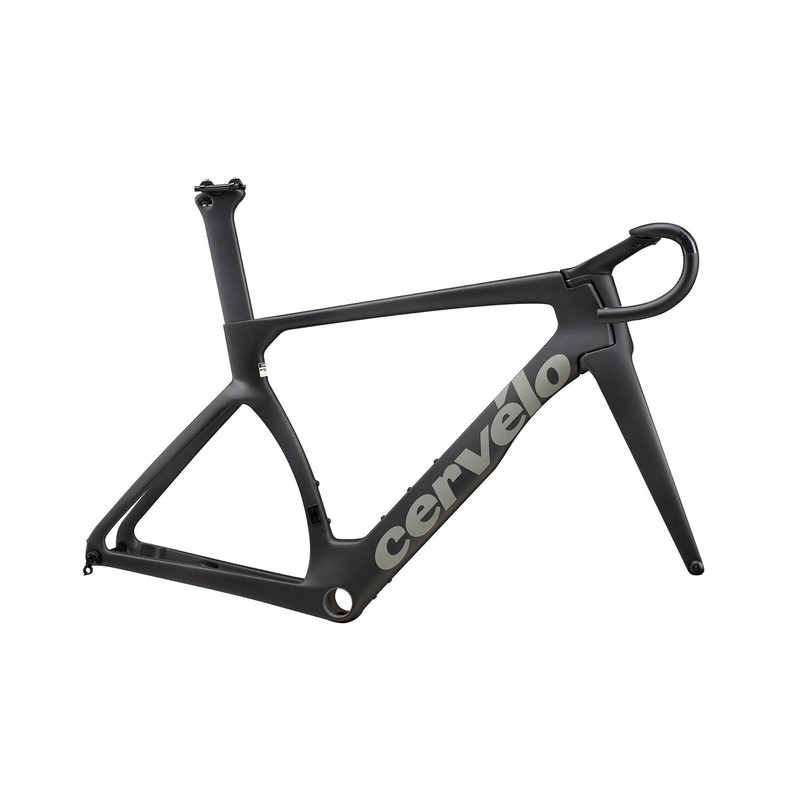

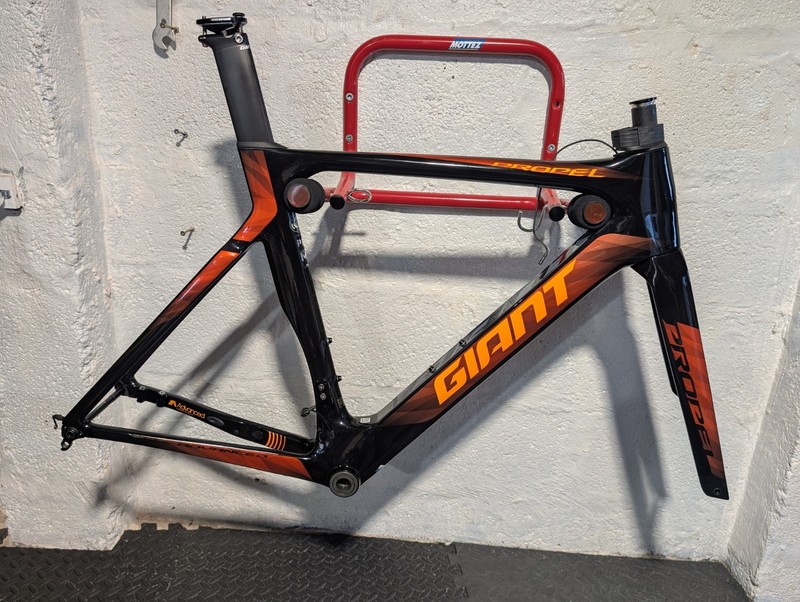

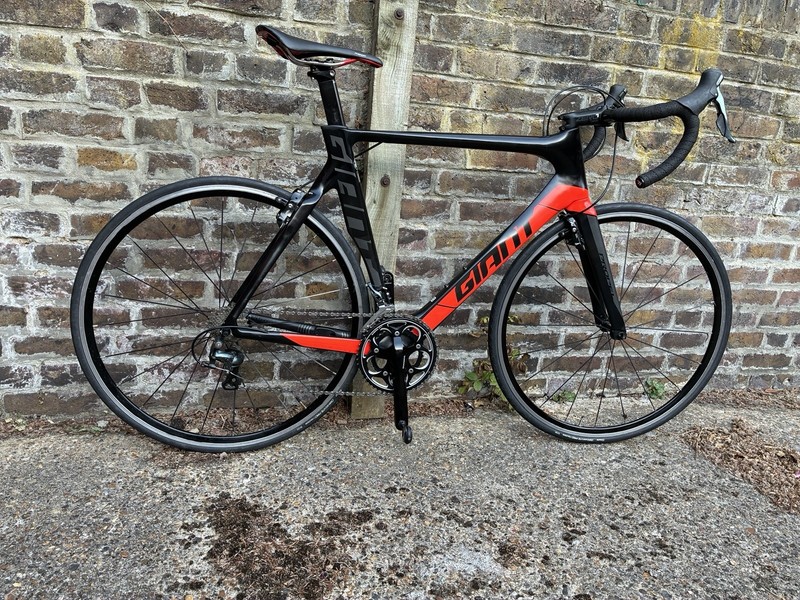

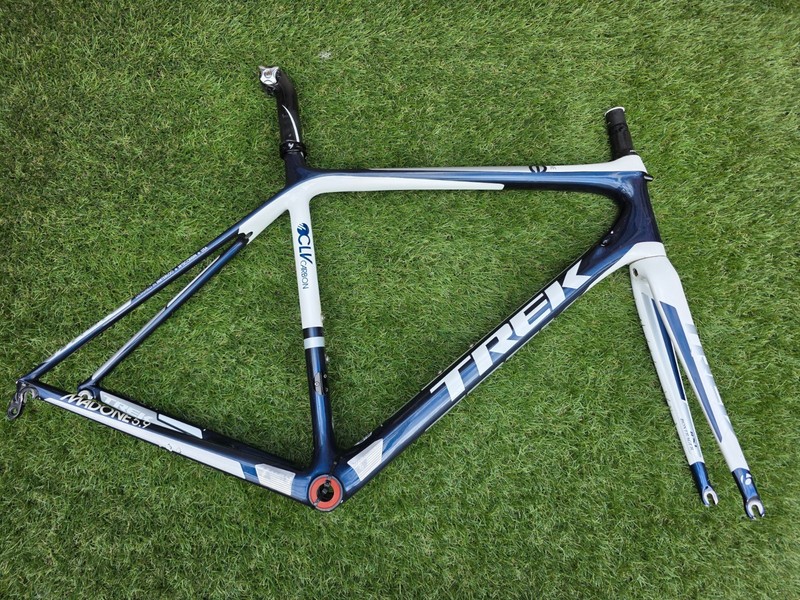

Aero road frames use deeper tube profiles, truncated airfoil shapes, and integrated cockpits to reduce aerodynamic drag. The Cervélo S5, Specialized Tarmac SL8, Trek Madone, Canyon Aeroad, and Giant Propel set the benchmarks. Modern aero frames have closed the weight gap on lightweight climbing frames — many come in under 900g. The trade-off is usually reduced compliance, proprietary seatposts and cockpits, and more complex maintenance. At speeds above 30kph, aero gains outweigh weight savings for most riders.

Loading listings…

Buying Guide

Aero Frame Buying Guide

How Aero Frames Work

Aero frames use NACA-profile or Kamm-tail tube shapes that manage airflow rather than simply pushing through it. Deeper down tubes and seat tubes present a wider frontal area but create less turbulent wake than round tubes. Integrated cockpits (bars and stem as one piece) clean up the frontal profile around the head tube — the most aerodynamically sensitive area. Internal cable routing, hidden brake callipers, and flush-mount accessories all contribute. The total drag saving over a round-tube frame is typically 10-15 watts at 40kph — significant in racing.

Integration vs Serviceability

The push for aerodynamics creates maintenance trade-offs. Fully integrated cockpits look clean but changing stem length or bar width requires buying a new cockpit (£200-500+). Proprietary D-shaped seatposts can't be swapped for standard round posts. Internal routing through the headset and down tube makes cable changes time-consuming. Some frames (Trek Madone, Cervélo S5) have better integration solutions than others — check how easy it is to bleed brakes and route cables before buying. If you maintain your own bike, simpler integration is worth the marginal aero penalty.

Weight vs Aero

The old weight-vs-aero debate is largely settled: for any course that isn't pure climbing, aero wins. At 40kph, a 200g weight penalty is recovered in under a minute of saved aero drag. Modern aero frames like the Specialized Tarmac SL8 and Cervélo S5 prove you don't have to choose — both are under 900g and highly aerodynamic. For dedicated climbing, lightweight frames (Trek Émonda, Cervélo R5, Cannondale SuperSix) save 100-200g. For most UK riding — rolling terrain, headwinds, group rides — aero is the better investment.

Buying Used Aero Frames

Used aero frames carry specific risks. Proprietary parts mean replacement cockpits, seatposts, and covers may be discontinued or expensive. Check parts availability before buying — if the frame needs a specific seatpost that's no longer made, the frame is effectively worthless. Inspect all integrated areas: junction boxes for electronic shifting, internal cable ports, and hidden brake callipers. Aerodynamic paint finishes (matte, textured) show crash damage less obviously than gloss — inspect under strong light. Verify the frame includes all proprietary hardware (bearing covers, cable plugs, seat clamp).
