Crown and Steerer Tube Assemblies

Crown and Steerer Tube Guide

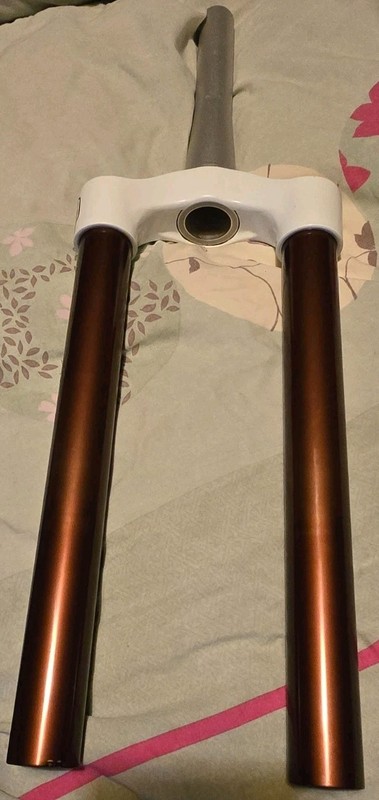

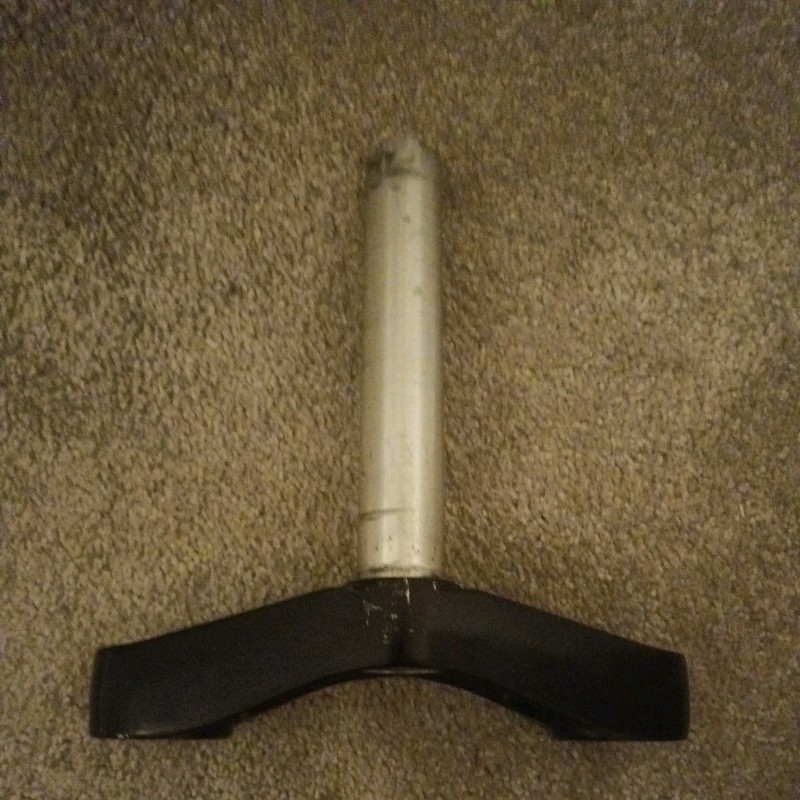

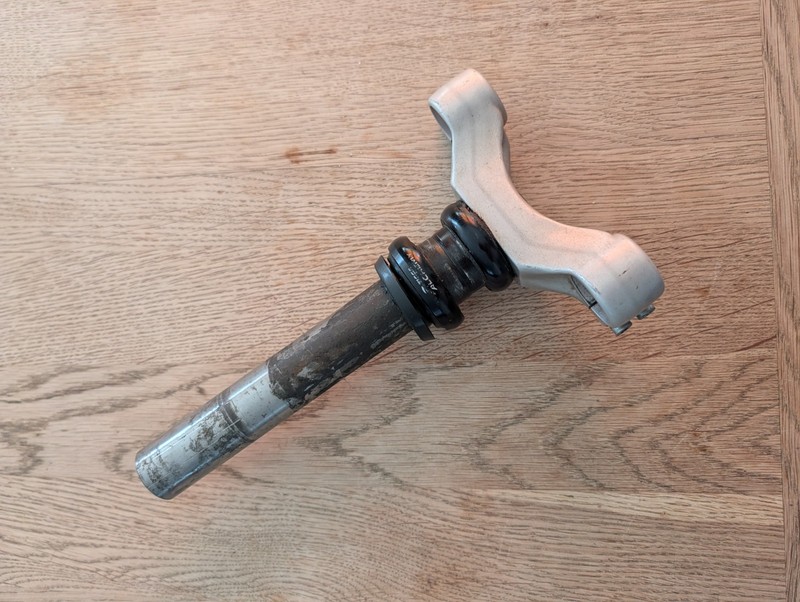

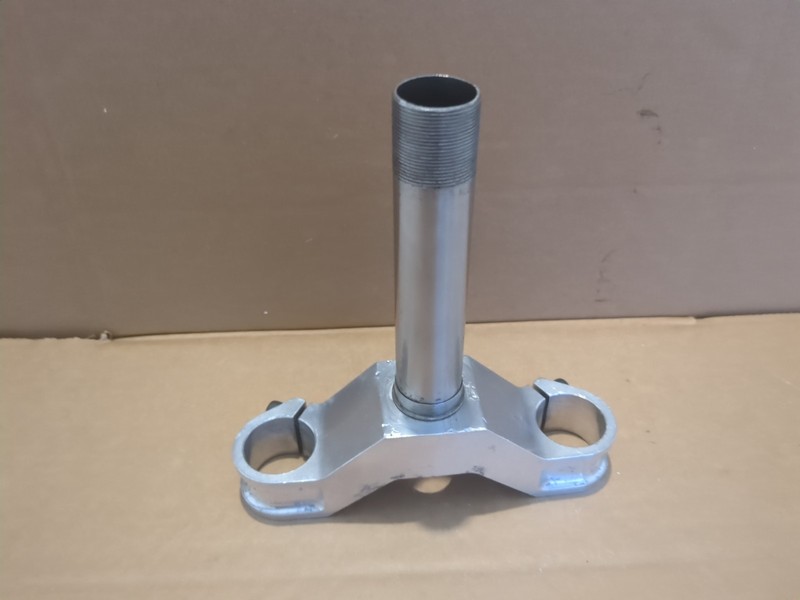

The crown-steerer unit (CSU) is the structural backbone of your fork. The crown bridges the two stanchion tubes, and the steerer tube passes up through the head tube to clamp into your stem. Replacing a CSU is expensive relative to other fork parts, but it's significantly cheaper than buying a complete new fork.

When You Need a New CSU

Crash damage is the most common reason — a hard enough impact can crack the crown, bend the steerer or cause the stanchions to go out of alignment (twist the bars while looking at the wheel — if the wheel doesn't point straight, the crown may be bent). A botched steerer tube cut is the other common cause — cut too short and there's no fixing it. Some riders also swap CSUs to change axle-to-crown length when fitting a different fork to a frame.

Steerer Tube Specifications

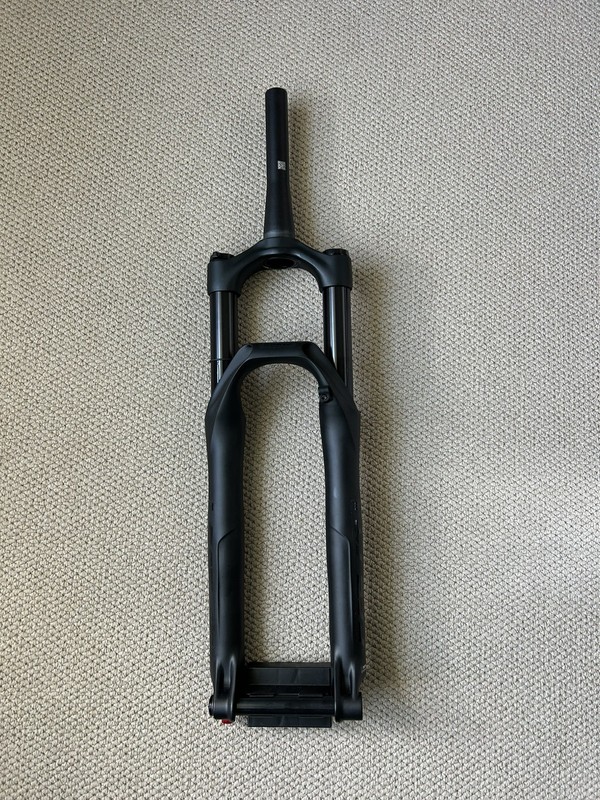

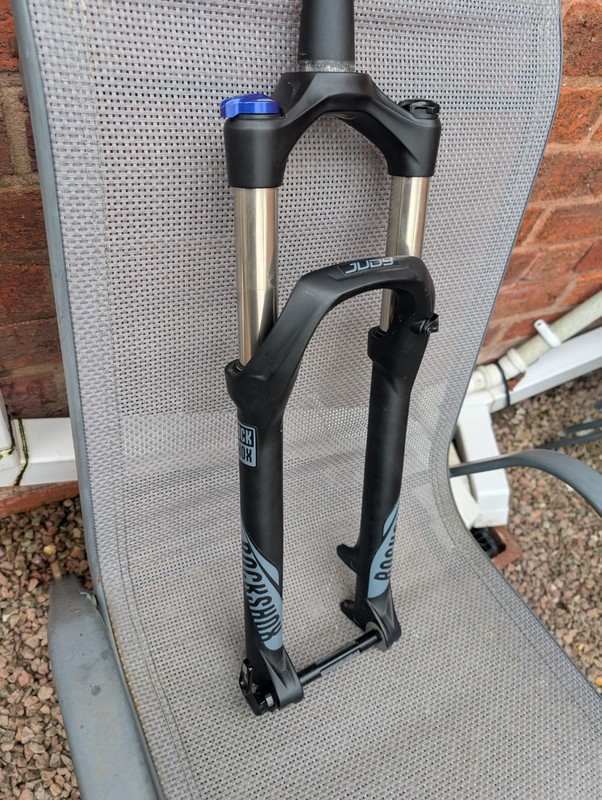

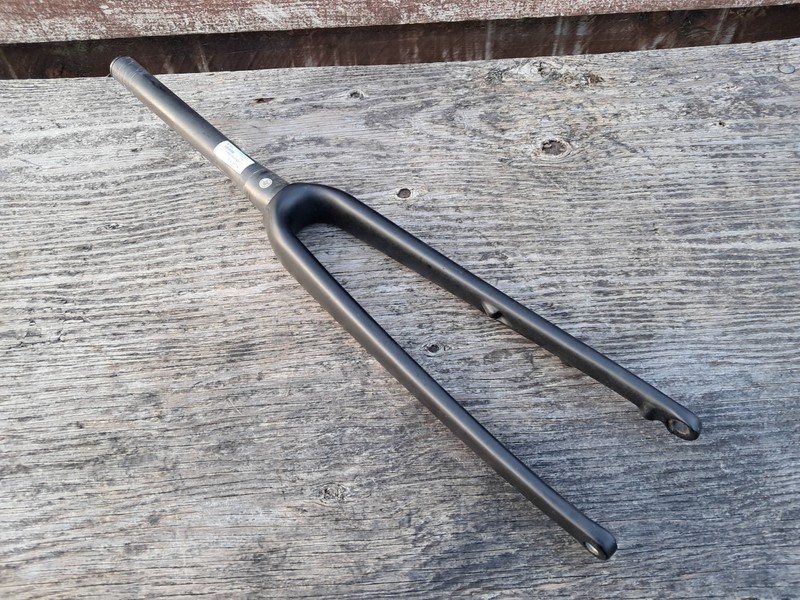

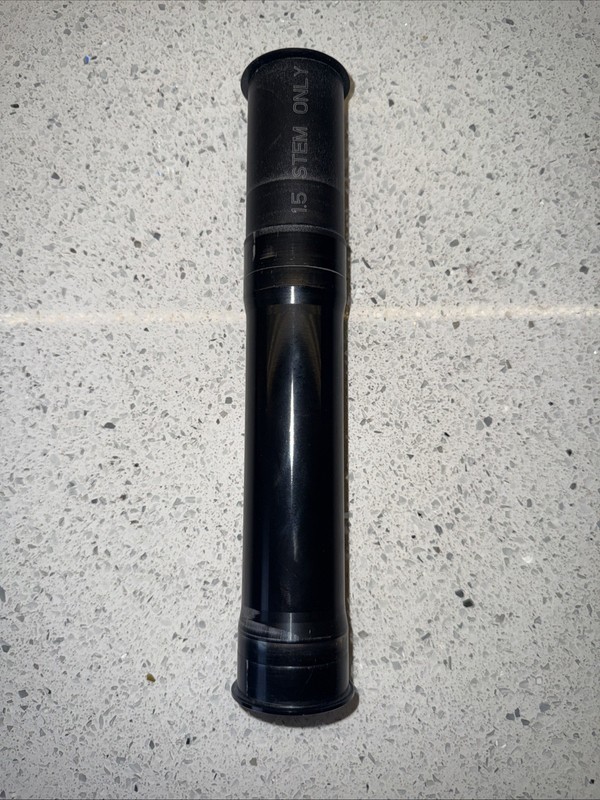

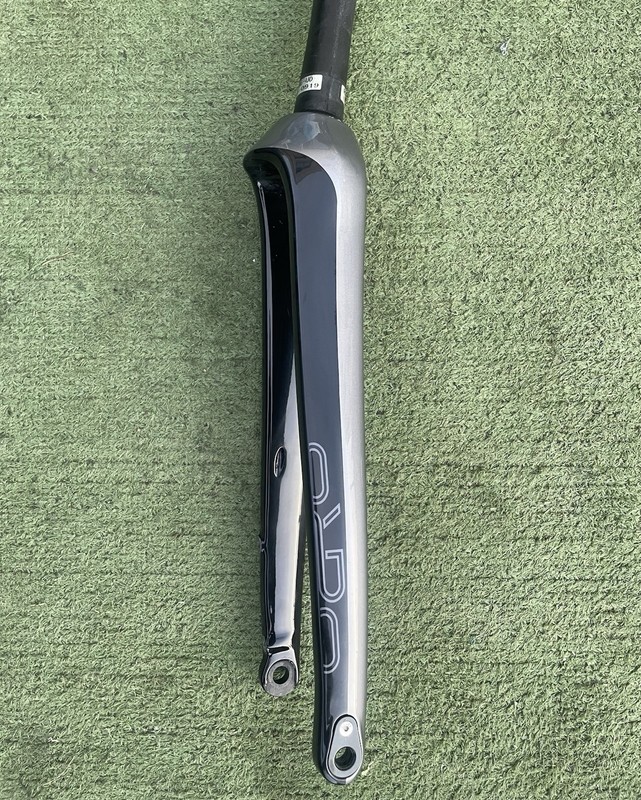

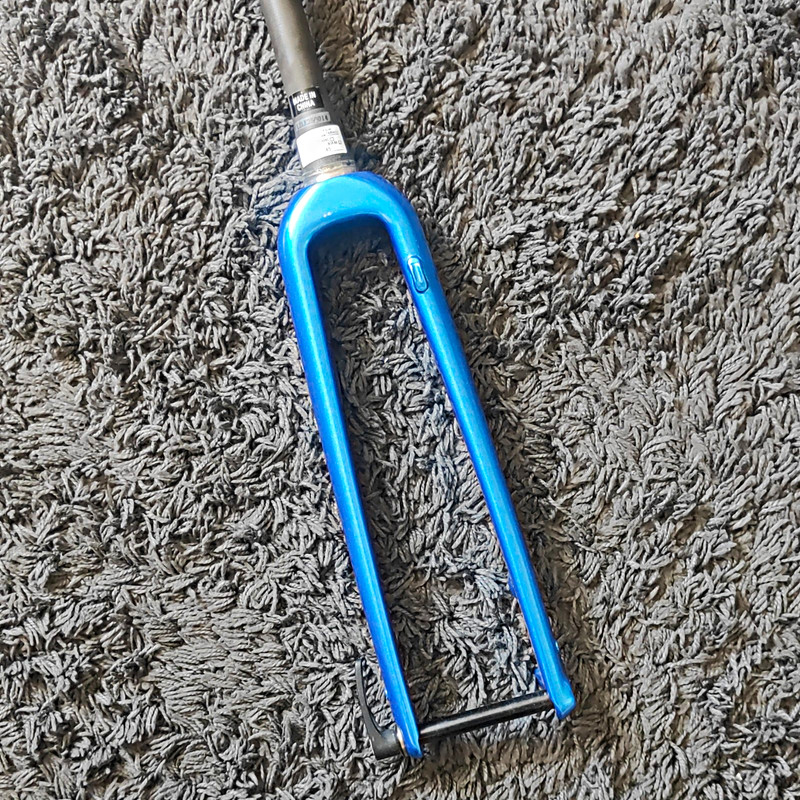

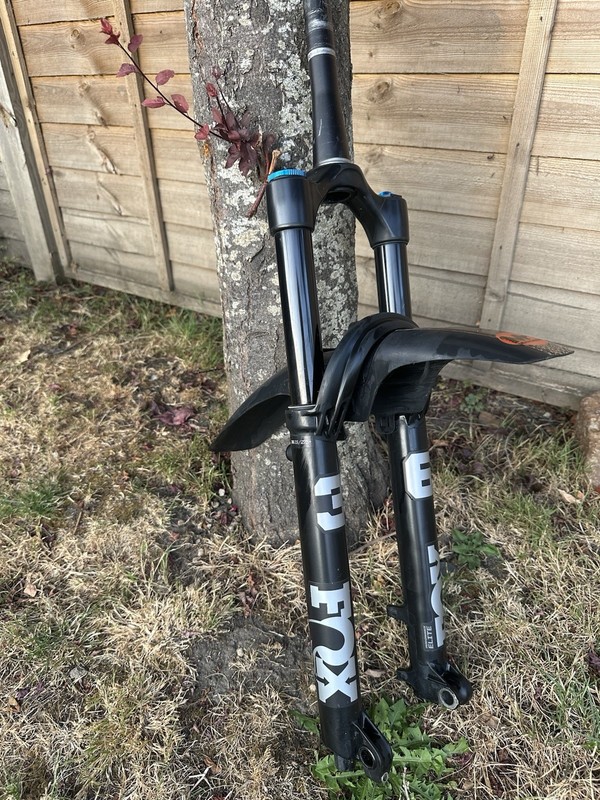

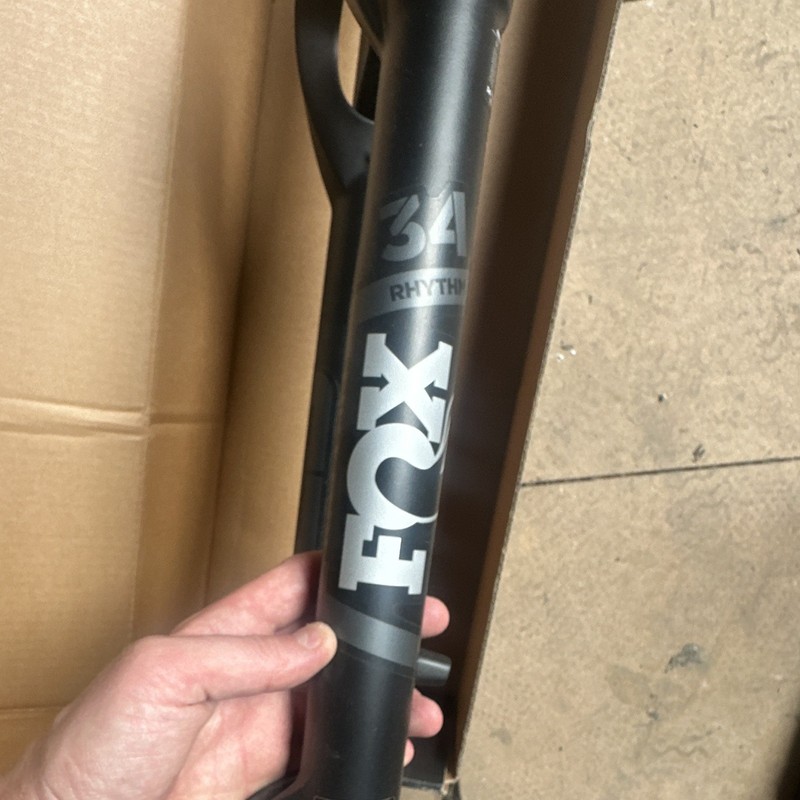

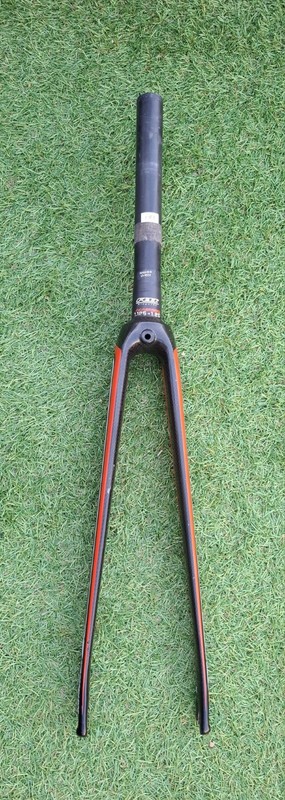

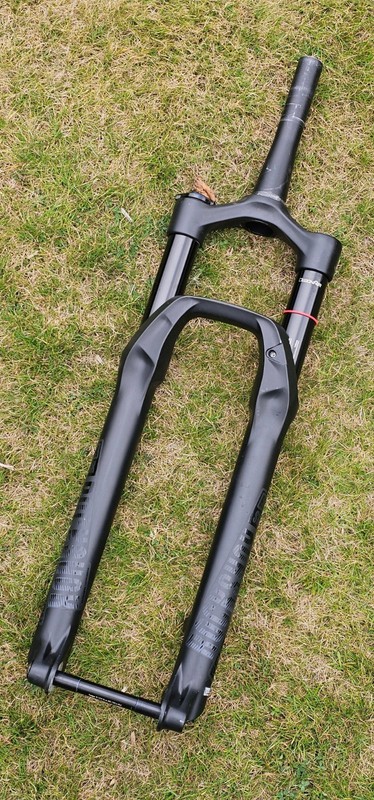

Modern MTB forks almost universally use a tapered steerer — 1-1/8" at the top, 1.5" at the bottom. This matches tapered head tubes and headsets. Older forks used straight 1-1/8" steerers. A handful of bikes (some Cannondale and Specialized models) use proprietary steerer standards. Always measure your head tube internal diameter at both ends before ordering a CSU.

Steerer Length

CSUs ship with an uncut steerer tube, typically 300mm long. You'll need to cut it to length during installation — measure twice. Steerer length depends on your head tube length plus headset stack height plus spacers plus stem clamp height, minus 3–5mm so the stem clamp compresses the steerer for proper preload.

Crown Offset (Rake)

The crown offset determines how far forward the axle sits relative to the steerer axis. Common offsets are 44mm (more stable, favoured for longer-travel bikes) and 51mm (quicker steering, common on shorter-travel trail bikes). Your frame was designed around a specific offset — changing it alters the bike's trail figure and handling. Stick with the OEM offset unless you specifically want to change the steering characteristics.
