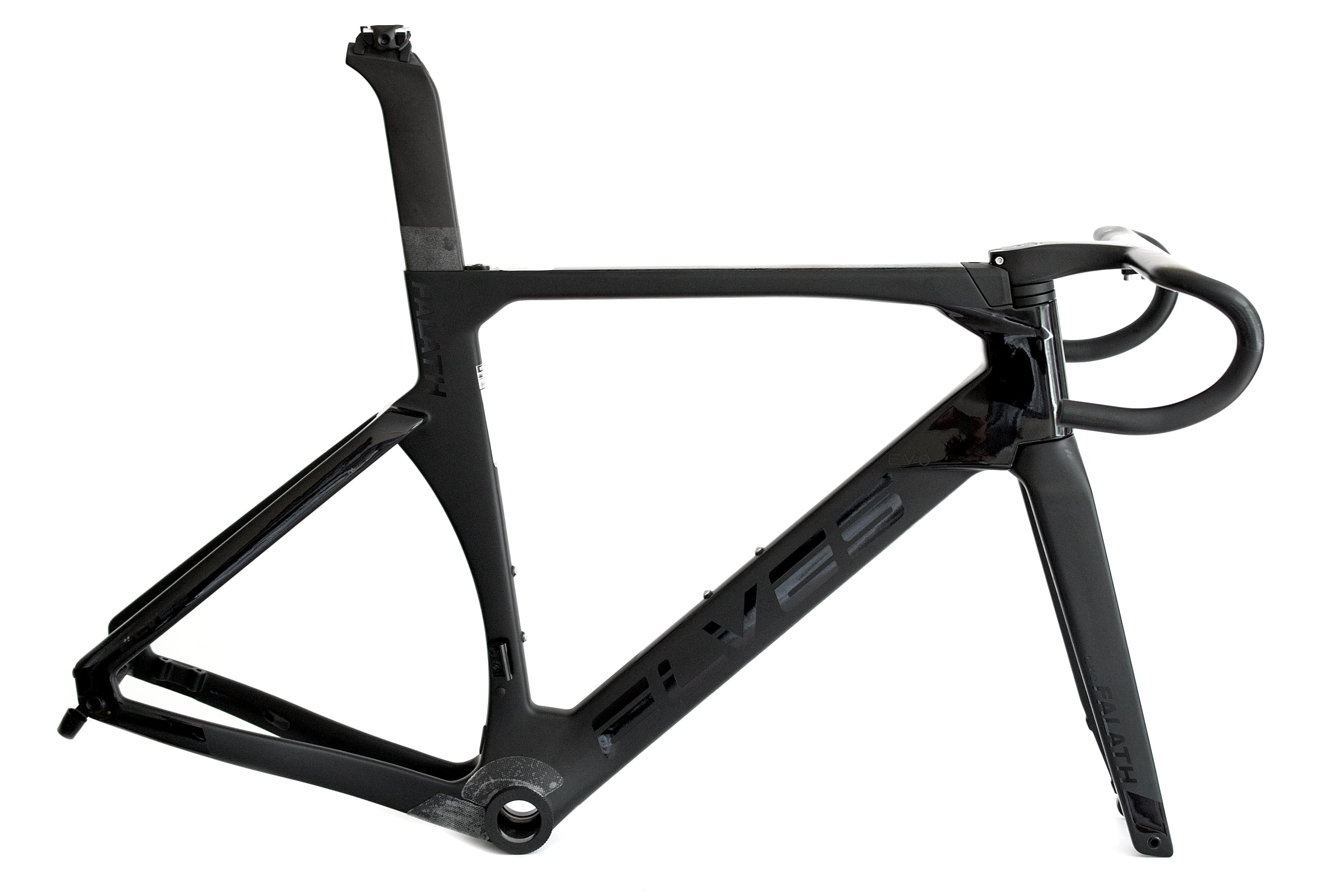

Elves Falath EVO+ Carbon Fibre Frame Set - Black - 54cm

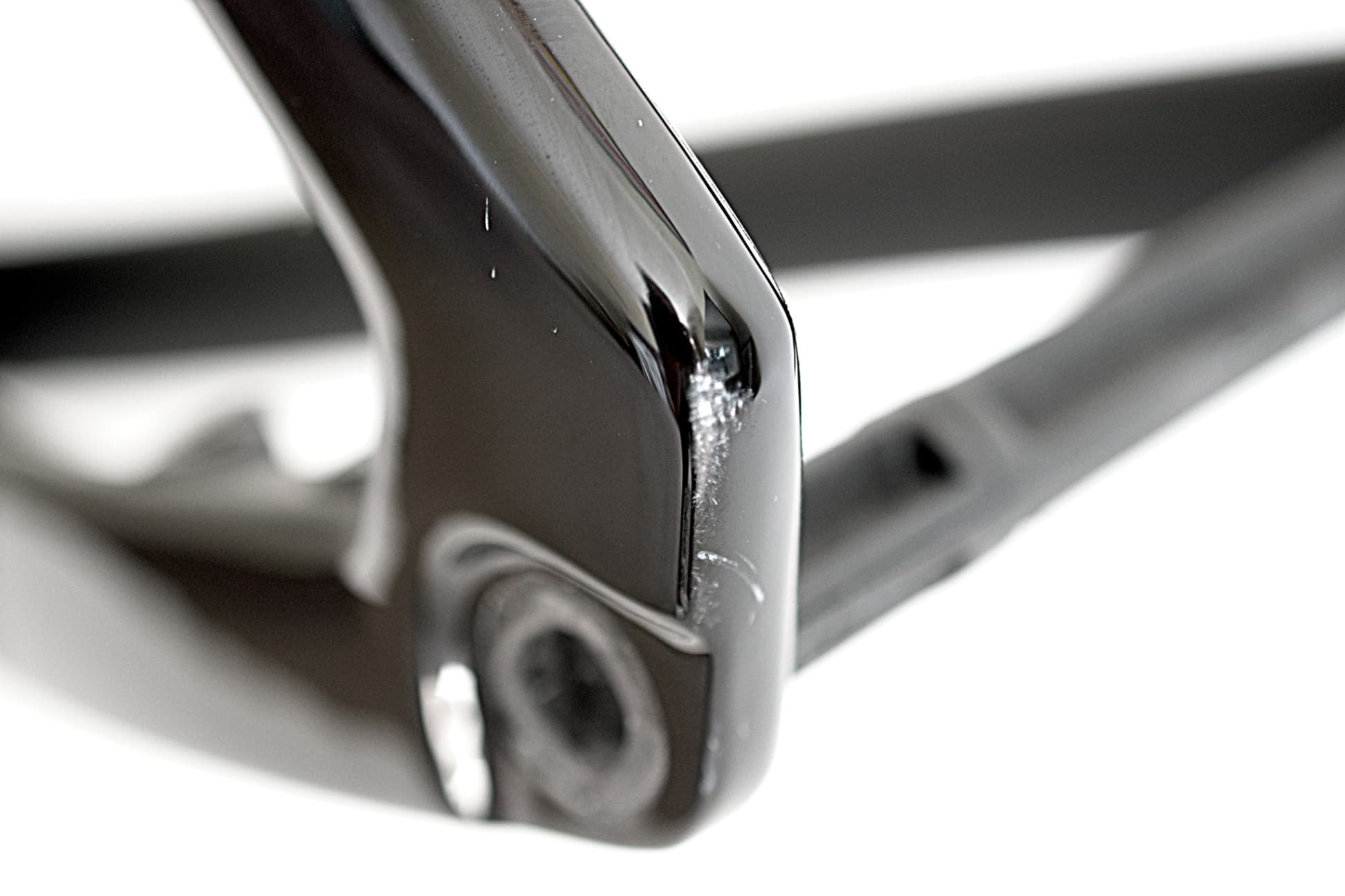

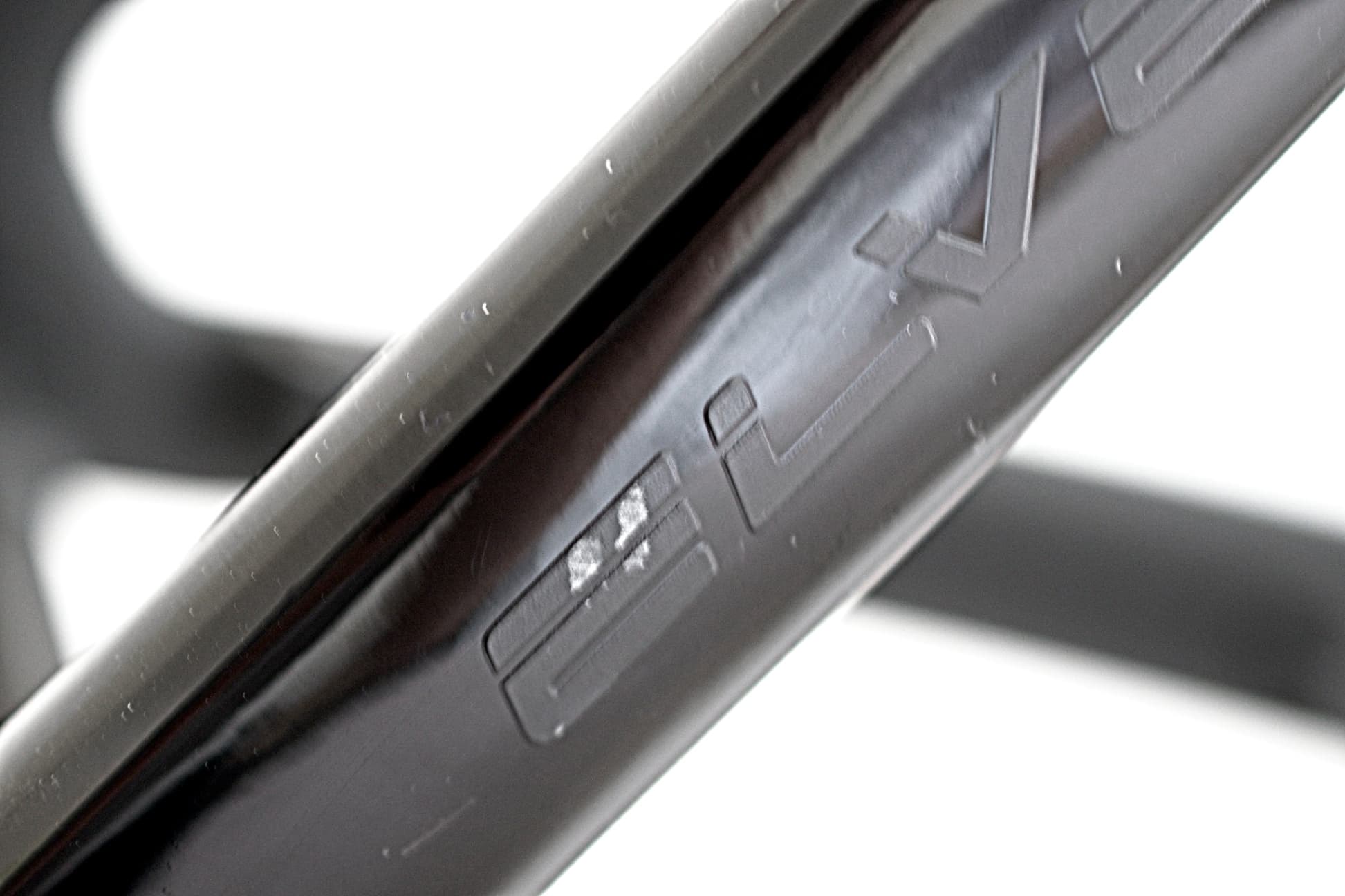

A brand new, never ridden and never fully built Elves Falath EVO+ carbon fibre road bike disc frame set in an excellent working condition and other than a scuff to the rear left dropout and a mark on a sticker on the rear right chain stay is in an excellent cosmetic condition.

Please note that the steerer tube has been cut.

Please see the images for a better understanding of the condition.

Included is a set of Elves Aero Evo one piece carbon fibre handlebars in an excellent working and cosmetic condition.

Width - 420mm

Stem - 110mm

Stem Angle -  -10º

Drop - 125mm

Reach - 70mm

Also Included.

Front and rear thru axles

T47 DUB bottom bracket

Headset

Seatpost

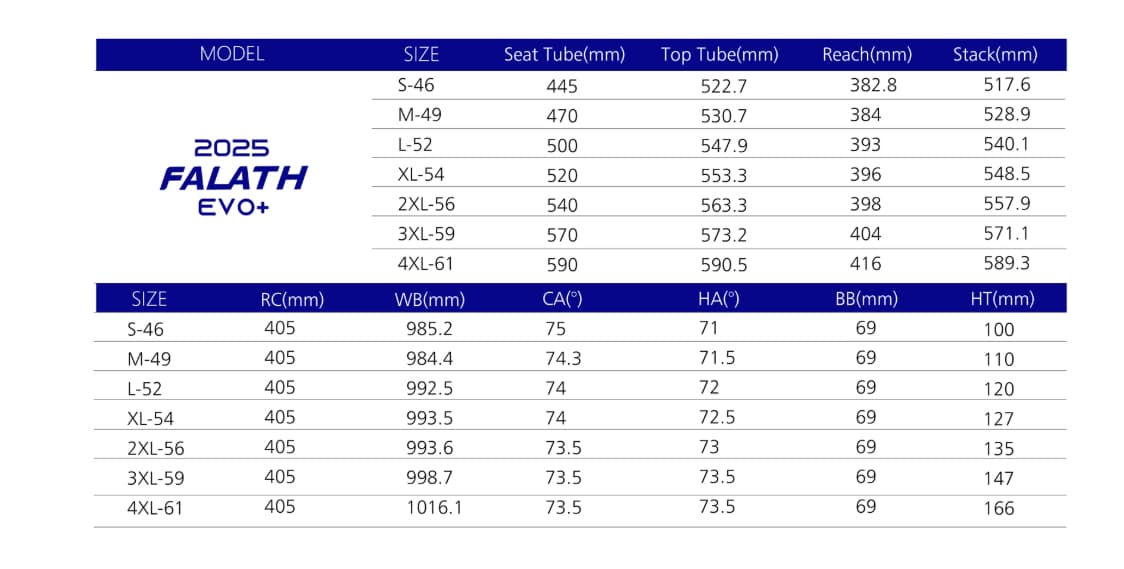

Specification.

Frame - 54cm - Black - T800 and T1000 carbon fibre

Full internal cable routing

Headset - 1-1/2”x7mm lower - 1-1/2”x7mm upper

Max tyre clearance - 700c x 32mm

Rotor size - 140mm or 160mm

Brake - Disc flat mount

Bottom bracket - T47 threaded (ID46mm x 85.5mm)

Rear derailleur hanger -  Standard (NOT UDH)

Thru axles - 100mm (M12x1.5x121mm) Front - 142mm (M12x1.5x163mm) Rear

Seat post - 25mm offset 350mm length - 7x7 and 7x10 clamps supplied

Compatible with mechanical and electronic 10/11/12 speed group sets inc Di2 and AXS

Please note this frame set is sold as seen, sorry no returns.

Any questions please ask.

Cash on collection only please.
